From now henceforth, Structville will be publishing daily questions on different aspects of civil engineering. You are expected to enter your response in the comment section. At the end of every week, exceptional participants will stand a chance to win some gifts. This exercise is open to participants all over the world.
Today’s Question

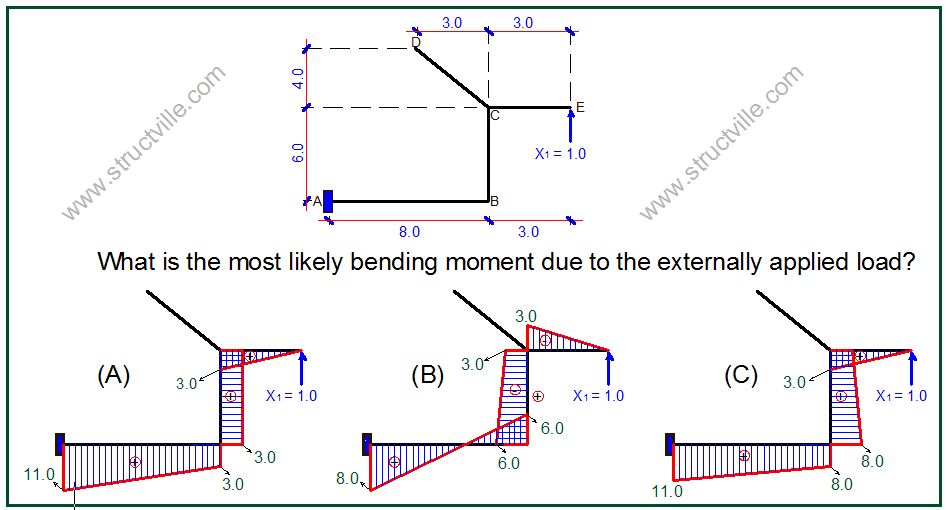

For the frame loaded as shown above, which of the options is the most likely bending moment diagram considering linear elastic response.
Thank you for participating in exercise today, remember to enter your answer in the comment section. The main aim of this exercise to stimulate knowledge of structural analysis on the internet in a fun and exciting way. We are always happy to hear from you, so kindly let us know how you feel about Structville.
E-mail: info@structville.com
WhatsApp: +2347053638996
You can also visit Structville Research for downloads of civil engineering materials.
STRUCTVILLE REINFORCED CONCRETE DESIGN MANUAL
We have this very affordable design manual available…
Do you want to preview the book, click PREVIEW
To download full textbook, click HERE
A) is the correct option.
Sum Y force= 1kN + Ra = 0 then Ra= – 1kN
Sum M(a) = 1 x (8+3) – Ma= 0 then Ma= 11kNm
A)
(A)
A
Moment@C, Mc = 1kN x 3m = 3 kNm
External Force 1kN is parallel to member BC, therefore no additional moments, Mc = Mb = 3 kNm
Moment@A, Ma = 3 kNm + (1 kNx 8m) = 11 kNm
Answer is (A)
A
A
A
(A) correct option
A
Agree with A
A
A is correct
