When two shear walls are connected intermittently with rigid beams or links, a coupled shear wall structure is formed. In coupled shear walls, the structural response of the two shear walls is linked to each other, influenced by the stiffness of the connecting beams. Coupled shear walls have found a variety of applications in the design of tall buildings, and other earthquake-resistant structural systems.

The effect of wind becomes more influential as a building gets taller. To effectively resist the force from wind, shear walls, frames, or a combination of both structural forms are normally employed in tall buildings. When shear walls have openings (pierced) which may serve for aesthetic, lighting or ventilation purposes, the behaviour of the shear wall is coupled to some degree.

The coupling beams, which connect the shear walls, play a crucial role in the behaviour of coupled shear walls. These beams are specifically designed to exhibit ductile inelastic behaviour, meaning they can undergo significant deformation without failure. This ductility allows them to dissipate energy during seismic events, effectively absorbing and distributing the lateral forces throughout the structure.

Furthermore, the dissipation of energy in coupled shear walls relies on the yield moment capacity and plastic rotation capacity of the coupling beams. When the yield moment capacity is excessively high, the beams experience limited rotations and dissipate minimal energy. Conversely, if the yield moment capacity is too low, the beams may undergo rotations exceeding their plastic rotation capacities.

Consequently, it is very important to design the coupling beams to have an optimal level of yield moment capacities, which are contingent upon the available plastic rotation capacity in the beams.

**Advantages of Coupled Shear Walls over Planar Shear Walls**

The arrangement of coupled shear walls provides several advantages over regular shear walls or other lateral load-resisting systems:

**Enhanced stiffness:**The coupling of multiple shear walls significantly increases the overall stiffness of the structure, reducing lateral deflections and sway during wind or seismic events.**Improved load distribution**: The coupling beams ensure a more even distribution of lateral loads across the shear walls, preventing localized stress concentrations and improving the overall load-carrying capacity of the system.**Architectural flexibility:**Coupled shear walls offer architectural flexibility, allowing for larger open spaces and creative designs, as the lateral stability is not solely dependent on the positioning of walls.**Seismic resilience:**The ductile behaviour of the coupling beams helps dissipate seismic energy, making coupled shear walls particularly effective in earthquake-prone regions, where they can significantly enhance a building’s seismic resilience.**Cost-effectiveness**: Compared to other lateral load-resisting systems like moment frames or braced frames, coupled shear walls can provide a cost-effective solution while still offering excellent performance

This aericle explores the wind load analysis of coupled shear wall structures with a fully solved example, under the following assumptions;

(i) The entire wind load is transferred to the shear walls (the contribution of the frames have been neglected)

(ii) The wind load acts as a uniformly distributed force of F/H

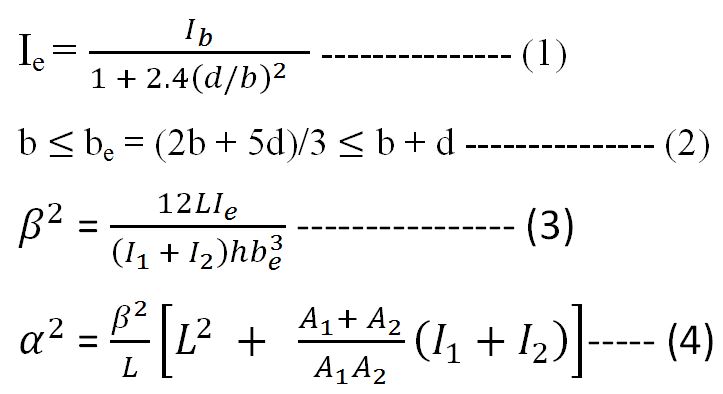

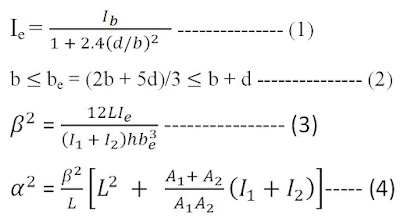

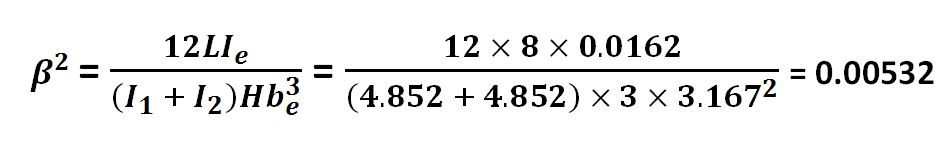

The two main parameters that define the behaviour of pierced shear walls are alpha(α) and beta (β), which depend on the geometrical properties of the coupling/connecting media (beams or floor slabs) and the shear wall. For fairly symmetrical arrangements as shown below, the following relationships given below can be used for the purpose of analysis.

**N/B**: *This is a curtailed information; kindly consult specialist textbooks/publications for full knowledge of the subject.*

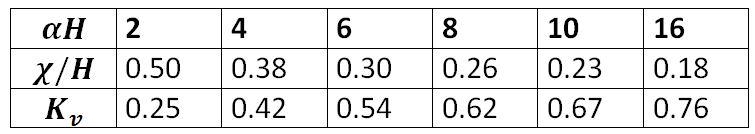

The value of *Kv* can be obtained from the table below;

**Solved Example**

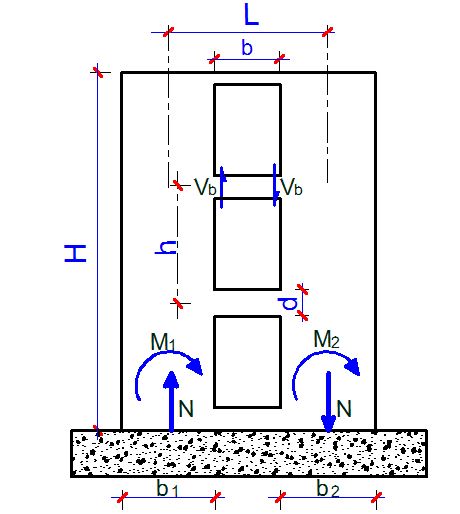

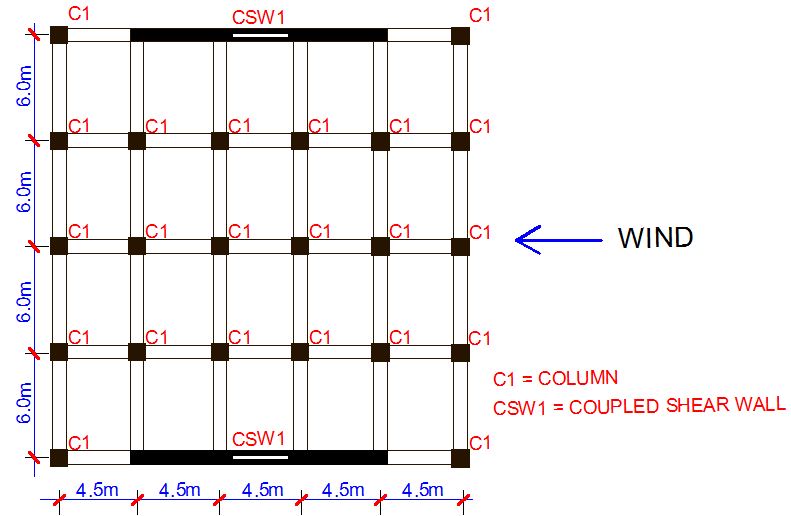

The structural arrangement of a tall building is shown below. The building is 90m tall, with 30 storeys @3m storey height. We are to determine the internal forces induced in the shear walls due to the wind load.

**Building ****Data:**

Height of building (H) = 90m

Storey height (h) = 3m

Thickness of shear wall (t) = 0.35m

Depth of connecting beam (d) = 900mm

Width of opening (b) = 2500mm

Centreline of connected walls (L) = 8000mm

Basic wind speed = 40 m/s

**Wind Load Analysis (Eurocode 1 Part 4)**

(a) Basic wind velocity

The fundamental value of the basic wind velocity V_{b,0} is the characteristic 10-minute mean wind velocity irrespective of wind direction and time of the year, at 10 m above ground level in open-country terrain with low vegetation such as grass, and with isolated obstacles with separations of at least 20 obstacle heights.

The basic wind velocity V_{b,0} is calculated from;

V_{b} = C_{dir} .C_{season} .V_{b,0}

Where:

V_{b} is the basic wind velocity defined as a function of wind direction and time of the year at 10m above the ground of terrain category II

V_{b,0} is the fundamental value of the basic wind velocity

C_{dir} is the directional factor (defined in the National Annex, but recommended value is 1.0)

C_{season} is the season factor (defined in the National Annex, but recommended value is 1.0)

For the area and location of the building that we are considering;

Basic wind velocity V_{b,0} = 40 m/s

V_{b} = C_{dir} .C_{season} . V_{b,0} = 1.0 × 1.0 × 40 = 40 m/s

**(b) Mean Wind**

The mean wind velocity V_{m}(z) at a height z above the terrain depends on the terrain roughness and orography, and on the basic wind velocity, V_{b}, and should be determined using the expression below;

V_{m}(z) = c_{r}(z). c_{o}(z).V_{b}

Where;

c_{r}(z) is the roughness factor (defined below)

c_{o}(z) is the orography factor often taken as 1.0

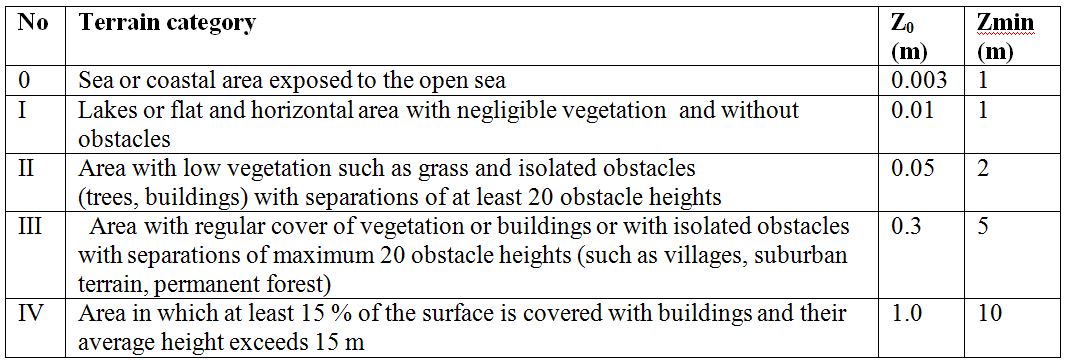

The terrain roughness factor accounts for the variability of the mean wind velocity at the site of the structure due to the height above the ground level and the ground roughness of the terrain upwind of the structure in the wind direction considered. Terrain categories and parameters are shown in the table below;

c_{r}(z) = k_{r}. In (z/z_{0}) for z_{min} ≤ z ≤ z_{max}

c_{r}(z) = c_{r}.(z_{min}) for z ≤ z_{min}

Where:

Z_{0} is the roughness length

Kr is the terrain factor depending on the roughness length Z_{0} calculated using

Kr = 0.19 (Z_{0}/Z_{0,II} )^{0.07}

Where:

Z_{0,II} = 0.05m (terrain category II)

Z_{min} is the minimum height

Z_{max} is to be taken as 200 m

Kr = 0.19 (0.05/0.05)^{0.07} = 0.19

c_{r}(z) = kr. In (z/z_{0}) = 0.19 × In(90/0.05) = 1.424

Therefore;

V_{m}(90) = c_{r}(z).c_{o}(z).V_{b} = 1.424 × 1.0 × 40 = 56.96 m/s

**(c) Wind turbulence**

The turbulence intensity I_{v}(z) at height z is defined as the standard deviation of the turbulence divided by the mean wind velocity. The recommended rules for the determination of I_{v}(z) are given in the expressions below;

I_{v}(z) = σ_{v}/V_{m} = k_{1}/(c_{0}(z).In(z/z_{0})) for z_{min} ≤ z ≤ z_{max}

I_{v}(z) = I_{v}.(z_{min}) for z ≤ z_{min}

Where:

k_{I} is the turbulence factor of which the value is provided in the National Annex but the recommended value is 1.0

C_{o} is the orography factor described above

Z_{0} is the roughness length described above.

For the building that we are considering, the wind turbulence factor at 90m above the ground level;

I_{v}(90) = σ_{v}/V_{m} = k_{1} / (c_{0} (z).In (z/z_{0})) = 1/(1 × In(90/0.05) ) = 0.1334

**(d) Peak Velocity Pressure**

The peak velocity pressure q_{p}(z) at height z is given by the expression below;

q_{p}(z) = [1 + 7I_{v}(z)] 0.5.ρ.V_{m}^{2}(z)= c_{e}(z).q_{b}

Where:

ρ is the air density, which depends on the altitude, temperature, and barometric pressure to be expected in the region during wind storms (recommended value is 1.25kg/m^{3})

c_{e}(z) is the exposure factor given by;

c_{e}(z)= (q_{p}(z))/q_{b}

q_{b} is the basic velocity pressure given by;

q_{b} = 1/2.ρ.V_{b}^{2}

q_{p}(90m) = [1 + 7(0.1334)] × 1/2 × 1.25 × 56.96^{2} = 3921.313 N/m^{2}

Therefore, q_{p}(90m) = 3.921 kN/m^{2}

**(e) Wind Pressure Coefficient**

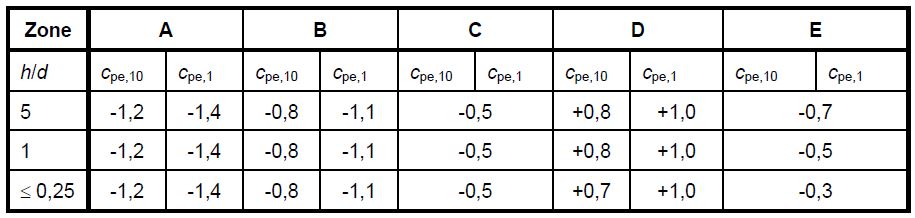

h/d = 90/22.5 = 4

Pressure coefficient for windward side (zone D) = +0.8

Pressure coefficient for leeward side (zone E) = -0.65 (from linear interpolation)

Net pressure coefficient = 0.8 – (-0.65) = 1.45

According to clause 7.2.2(2), the force generated from zone D and E simultaneously should be corrected for lack of correlation.

Since h/d = 4 in our calculation, we have to interpolate between h/d ≥ 5(1.0) and h/d ≤ 1.0 (0.85).

On interpolating;

Correction factor = 0.9625

Therefore, net wind pressure = 0.9625 × 1.45 × 3.921 = 5.472 kN/m^{2}

**IV Structural Analysis**The wind force of the structure;

F = 5.472 kN/m

^{2}× 24m × 90m = 11819.52 kN (taking structural factor as 1.0 because building is less than 100m tall, and h/d = 4)

If we assume that this load is shared equally among the two shear walls, then the load on each shear wall = 5909.76 kN

**Geometrical Properties of Elements **

Area of shear walls = A_{1} = A_{2} = 0.35 × 5.5 = 1.925 m^{2}

Second moment of area of walls = I_{1} = I_{2} = (0.35 × 5.5^{3})/12 = 4.852 m^{4}

Moment of inertia of connecting beam I_{b} = (0.35 × 0.9^{3})/12 = 0.02126 m^{4}^{}

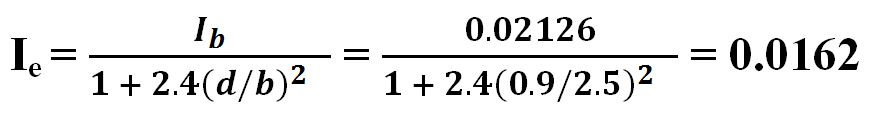

b_{e} = (2b + 5d)/3 = [(2 × 2.5) + (5 × 0.9)] / 3 = 3.167

αH = 19.962

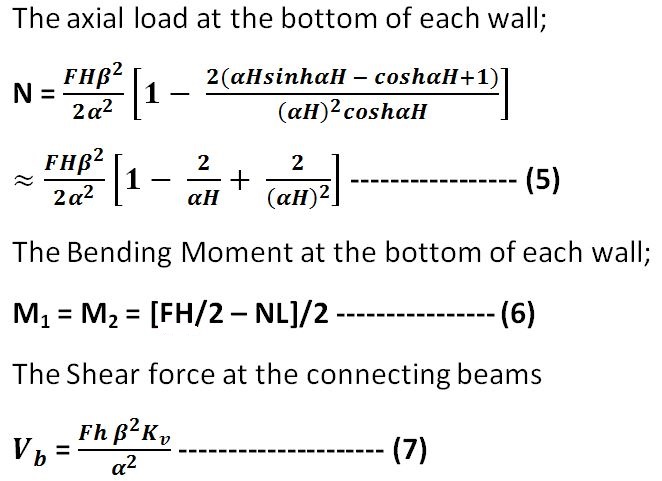

Therefore, the axial force (N) at the bottom of wall;

The bending moment at the bottom of the wall elements;

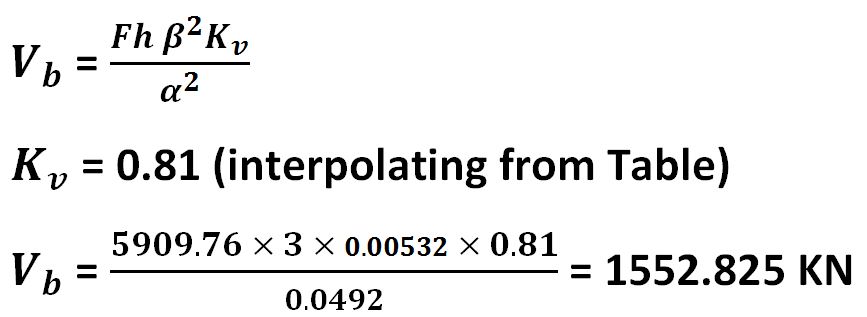

The shear force at the connecting beams;

The bending moment on the connecting beams;

These internal forces should be factored, and combined with other appropriate load cases for the purpose of design.
